Name: 868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824894MHz 20x250mm
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10621-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 824-894MHz

VSWR : <2.0

Peak Gain : 2dBi

Impedance : 50

Contact Now

Outdoor Waterproof Omnidirectional Antenna IP67 Fiberglass Antenna 824-894MHz Antenna 868MHZ Antenna 2dBi 20x250

1. Specification

A. Electrical Characteristics
Frequency	824-894MHz
Impedance	50 Ohm
S.W.R.	<2
Gain	2dBi
Efficiency	≈76%
Horizontal Beamwidth	360°
Vertical Beamwidth	83-93°
Polarization	Linear
Max Power	50W
B. Material & Mechanical Characteristics
Connector Type	N connector
Dimension	Φ20*250mm
Weight	0.28Kg
Radome material	Fiberglass
C. Environmental
Operation Temperature	- 40 ˚C ~ + 80 ˚C
Storage Temperature	- 40 ˚C ~ + 80 ˚C

2. Antenna - S Parameter Test Data
2.1 VSWR

868 Mhz Omnidirectional Antenna IP67 2dBi Fiberglass Antenna 824-894MHz 20x250mm

2.2 Total Efficiency & Gain:

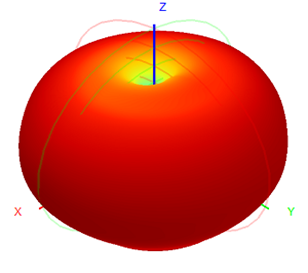

2.3 Radiation Pattern
