2*N Female 5.8G 5150-5850M Wifi 12dBi Dual Polarized Directional Antenna Coal Mine

Name: 2N Female 58G 51505850M Wifi 12dBi Dual Polarized Directional Antenna Coal Mine
Brand: Leenz
Price: 1 USD

Quality 2*N Female 5.8G 5150-5850M Wifi 12dBi Dual Polarized Directional Antenna Coal Mine wholesale

Brand Name : Leenz

Model Number : LZANT-10288-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 5150-5850MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

2*N female 5.8G 5150-5850M wifi 12dBi dual-polarized coal mine directional antenna

1. Specification

A. Electrical Characteristics
Frequency	5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	12dBi
Polarization	H+V
Horizontal Beamwidth	35±5°
Vertical Beamwidth	35±5°
F/B	>25dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	2*N Female connector
Dimension	18618628mm
Radome material	ABS
Weight	0.9Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
2*N Female 5.8G 5150-5850M Wifi 12dBi Dual Polarized Directional Antenna Coal Mine

2.2 Total Efficiency & Gain:

Port 1 – H 极化		Port 2 – V 极化
Frequency(MHz)	Gain(dBi)	Frequency(MHz)	Gain(dBi)
5150	13.0	5150	11.5
5200	12.9	5200	11.5
5250	12.6	5250	11.2
5300	12.6	5300	11.3
5350	12.6	5350	11.3
5400	12.7	5400	11.4
5450	12.5	5450	11.6
5500	12.3	5500	11.8
5550	12.0	5550	11.9
5600	12.2	5600	12.3
5650	12.0	5650	12.5
5700	11.8	5700	12.3
5750	11.7	5750	12.2
5800	11.6	5800	12.1
5850	11.2	5850	11.9

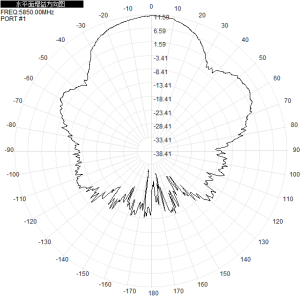

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
5150MHz
5500MHz
5850MHz

Product Tags:

5.8 ghz directional antenna

12dBi directional antenna

dual polarized directional antenna
