4G 1710-2700M LTE 10 Dbi Directional Antenna For Lora

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4G 17102700M LTE 10 Dbi Directional Antenna For Lora
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-10796-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1710-2700MHz

VSWR : <2.0

Peak Gain : 10dBi

Impedance : 50

Contact Now

4G 1710-2700M LTE 10dBi single-polarized wall-mounted directional antenna

1. Specification

A. Electrical Characteristics
Frequency	1710-2700MHz
S.W.R.	<= 2.0
Antenna Gain	10dBi
Polarization	V
Horizontal Beamwidth	65±5°
Vertical Beamwidth	60±5°
F/B	>10dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	14012037mm
Radome material	ABS
Weight	0.4Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
4G 1710-2700M LTE 10 Dbi Directional Antenna For Lora

2.2 Total Efficiency & Gain:

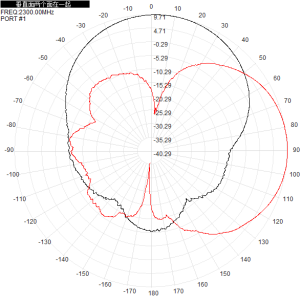

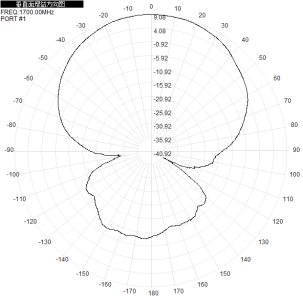

2.3 Radiation Pattern

Product Tags:

directional antenna for lora
