4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted

Name: 4G Lte Directional Antenna 17102700M LTE 8dBi SinglePolarized WallMounted
Brand: Leenz
Price: 1 USD

Quality 4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted wholesale

Brand Name : Leenz

Model Number : LZANT-10636-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1710-2700MHz

VSWR : <2.0

Peak Gain : 8dBi

Impedance : 50

Contact Now

4G 1710-2700M LTE 8dBi single-polarized wall-mounted directional antenna

1. Specification

A. Electrical Characteristics
Frequency	1710-2700MHz
S.W.R.	<= 2.0
Antenna Gain	8dBi
Polarization	V
Horizontal Beamwidth	80±5°
Vertical Beamwidth	60±5°
F/B	>10dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	RG141 L=20cm SMA Male connector
Dimension	10010025mm
Radome material	ABS
Weight	0.35Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
4G Lte Directional Antenna 1710-2700M LTE 8dBi Single-Polarized Wall-Mounted

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
1700	6.3
1800	6.8
1900	6.8
2000	6.9
2100	7.0
2200	7.4
2300	7.4
2400	7.4
2500	8.2
2600	8.8
2700	8.5

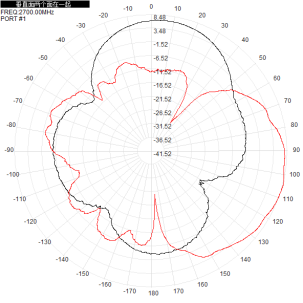

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
1710MHz
2300MHz
2700MHz
