Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine

Brand Name : Leenz

Model Number : LZANT-10808-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 3300-3800MHz

VSWR : <2.0

Peak Gain : 16dBi

Impedance : 50

Contact Now

5G 3300-3800M3.3-3.8G 16dBi single-polarization base station coal mine directional antenna

1. Specification

A. Electrical Characteristics
Frequency 3300-3800MHz
S.W.R. <= 2.0
Antenna Gain 16dBi
Polarization V
Horizontal Beamwidth 35±5°
Vertical Beamwidth 18±5°
F/B >27dB
Impedance 50Ohm
Max. Power 50W
B. Material & Mechanical Characteristics
Connector Type N Female connector
Dimension

260*260*35mm
Radome material ABS
Weight 1.5Kg
C. Environmental
Operation Temperature - 40 ˚C ~ + 85 ˚C
Storage Temperature - 40 ˚C ~ + 85 ˚C
Operation Humidity ＜95%
Rated Wind Velocity 36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine

2.2 Total Efficiency & Gain:

Frequency(MHz) Gain(dBi)
3300 15.8
3350 16.1
3400 16.2
3450 16.4
3500 16.3
3550 16.4
3600 16.6
3650 16.5
3700 16.4
3750 16.0
3800 16.1

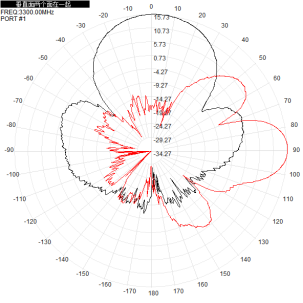

2.3 Radiation Pattern
Port1 2D-Horizontal 2D-Vertical Horizontal & Vertical
3300MHz Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine
3550MHz Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine
3800MHz Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine Directional 5g Antenna 3300-3800M 3.3-3.8G 16dBi Single-Polarization Base Station Coal Mine
