industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate

Name: industrial directional antenna 4g 5G 17003800M single polarized 17102690M 33003800M 12dBi base station sector plate
Brand: Leenz
Price: 1 USD

Quality industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate wholesale

Brand Name : Leenz

Model Number : LZANT-10613-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 5K per day

Delivery Time : 15 days

Frequency : 1710-3800MHz

VSWR : <2.0

Peak Gain : 12dBi

Impedance : 50

Contact Now

4G5G 1700-3800M single-polarized 1710-2690M3300-3800M 12dBi base station sector plate directional antenna

1. Specification

A. Electrical Characteristics
Frequency	1710-3800MHz
S.W.R.	<= 2.0
Antenna Gain	12dBi
Polarization	V
Horizontal Beamwidth	70±10°
Vertical Beamwidth	35±5°
F/B	>27dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	25016080mm
Radome material	UPVC
Weight	1.4Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
industrial directional antenna 4g 5G 1700-3800M single polarized 1710-2690M 3300-3800M 12dBi base station sector plate

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
1700	10.5
1800	10.8
1900	10.7
2000	11.0
2100	11.5
2200	12.0
2300	12.1
2400	12.1
2500	12.4
2600	12.5
2700	12.9

3300	13.7
3350	13.9
3400	13.8
3450	13.9
3500	13.8
3550	13.6
3600	13.5
3650	13.5
3700	13.9
3750	13.6
3800	13.6

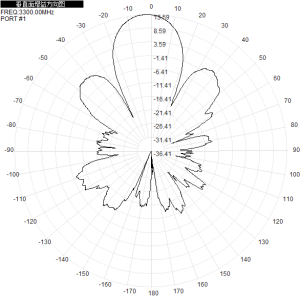

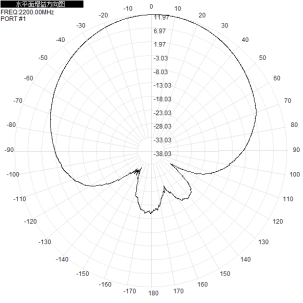

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
1700MHz
2200MHz
2700MHz

3300MHz
3800MHz
