5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted

Name: 58G 24 Ghz Omnidirectional Outdoor Antenna 2400250051505850M Wifi6 15dBi Single Polarized Wall Mounted
Brand: Leenz
Price: 1 USD

Quality 5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted wholesale

Brand Name : Leenz

Model Number : LZANT-10923-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 500 per day

Delivery Time : 15 days

Frequency : 2400-2500/5150-5850MHz

VSWR : <2.0

Peak Gain : 12/15dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
Frequency	2400-2500/5150-5850MHz
S.W.R.	<= 2.0
Antenna Gain	12/15dBi
Polarization	Vertical
Horizontal Beamwidth	45±5°/20±5°
Vertical Beamwidth	45±5°/20±5°
F/B	>29dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	N Female connector
Dimension	22319446mm
Radome material	ABS
Weight	0.9Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR
5.8G 2.4 Ghz Omnidirectional Outdoor Antenna 2400-2500/5150-5850M Wifi6 15dBi Single Polarized Wall Mounted

2.2 Total Efficiency & Gain:

Frequency(MHz)	Gain(dBi)
2400	11.0
2410	11.0
2420	11.1
2430	11.2
2440	11.1
2450	11.3
2460	11.4
2470	11.4
2480	11.5
2490	11.4
2500	11.5

5150	15.7
5200	15.8
5250	15.6
5300	15.4
5350	15.5
5400	14.8
5450	14.5
5500	14.5
5550	14.3
5600	14.5
5650	14.8
5700	14.9
5750	15.1
5800	14.6
5850	15.2

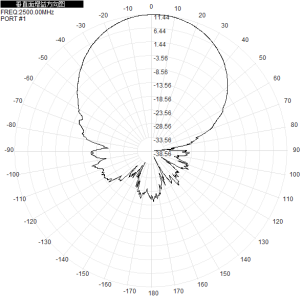

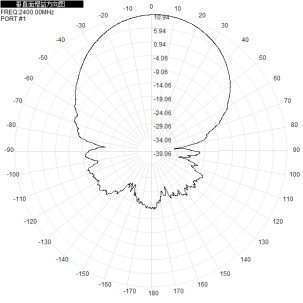

2.3 Radiation Pattern

Port1	2D-Horizontal	2D-Vertical	Horizontal & Vertical
2400MHz
2500MHz
5150MHz
5850MHz
