2.4G 5.8G Wifi6 External Directional Wifi Antenna MIMO 13dbi H+V Four Port MIMO 4xN-K

Product Categories

Dongguan Leenz Electronics Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 24G 58G Wifi6 External Directional Wifi Antenna MIMO 13dbi HV Four Port MIMO 4xNK
Brand: Leenz
Price: 1 USD

Brand Name : Leenz

Model Number : LZANT-11270-A

Certification : RoHs

Place of Origin : China

MOQ : 10

Payment Terms : T/T

Supply Ability : 200 per day

Delivery Time : 15 days

Frequency : 2400-2500/5150-5850MHz

VSWR : <2.0

Peak Gain : 13dBi

Impedance : 50

Contact Now

1. Specification

A. Electrical Characteristics
	Port 1	Port 2	Port 3	Port 4
Frequency
	2400-2500	2400-2500M	5150-5850M	5150-5850M
S.W.R.	<= 2.0
Antenna Gain	13dBi
Polarization	V	H	V	H
Horizontal Beamwidth	32°
Vertical Beamwidth	30°
F/B	>22dB
Impedance	50Ohm
Max. Power	50W
B. Material & Mechanical Characteristics
Connector Type	4*N Female connector
Dimension	28019025mm
Radome material	ABS
Weight	1.0Kg
C. Environmental
Operation Temperature	- 40 ˚C ~ + 85 ˚C
Storage Temperature	- 40 ˚C ~ + 85 ˚C
Operation Humidity	＜95%
Rated Wind Velocity	36.9m/s

2. Antenna - S Parameter Test Data
2.1 VSWR

2.4G 5.8G Wifi6 External Directional Wifi Antenna MIMO 13dbi H+V Four Port MIMO 4xN-K

2.2 Total Efficiency & Gain:

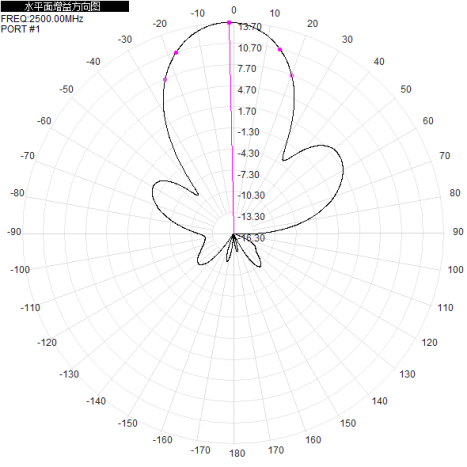

2.3 Radiation Pattern
